Why Is My NordicTrack Commercial 1750 Treadmill Deck Warping?
The NordicTrack Commercial 1750 treadmill is a popular mid-range machine praised for its incline range, space-saving foldability, and responsive touchscreen. However, a common structural issue reported by heavy or frequent users is deck warping—a condition where the running platform loses its flatness, creating uneven spots that disrupt stride and accelerate belt wear. Whether you notice a thumping sensation underfoot or a visible bow in the deck surface, understanding why this happens and how to address it is essential for preserving the treadmill’s longevity.
Deck warping on the Commercial 1750 typically emerges after 12–18 months of use, especially if the unit is placed on an unlevel floor or subjected to high-impact running without proper belt lubrication. The problem can range from a slight dip in the center (concave warp) to a raised ridge near the front roller (convex warp). Ignoring it can lead to a broken belt or motor overload error, so proactive diagnosis and correction are vital.
What Exactly Is Treadmill Deck Warping and How Does It Happen?
Deck warping refers to a permanent, non‑elastic deformation of the composite or wood‑core running platform. On the NordicTrack Commercial 1750, the deck is a multi‑layer board (often part of the “FlexSelect” cushioning system) that supports the walking/running belt. Warping occurs when the material degrades unevenly due to moisture absorption, excessive heat from the motor, or repeated heavy impacts that exceed the deck’s flex tolerance.
The most common failure points are:
- Moisture intrusion: If the treadmill is in a basement or garage, humidity can swell one side of the deck, causing a crescent warp. Sweat pooling on the belt can also migrate into the deck edges over time.
- Heat and friction: A poorly lubricated belt generates extra heat, which bakes moisture out of the deck unevenly, leading to expansion and contraction cracks—precursors to warping.
- Uneven floor support: The Commercial 1750 has four adjustable leveling feet. If the deck is torqued because one foot isn’t touching the ground, the frame twists, stressing the deck into a permanent bow.
How Can I Diagnose a Warped Deck on My NordicTrack Commercial 1750?
Before spending money on replacement parts, confirm that your deck is actually warped—not just loose belt tension or a misaligned roller. Use the following diagnostic steps:

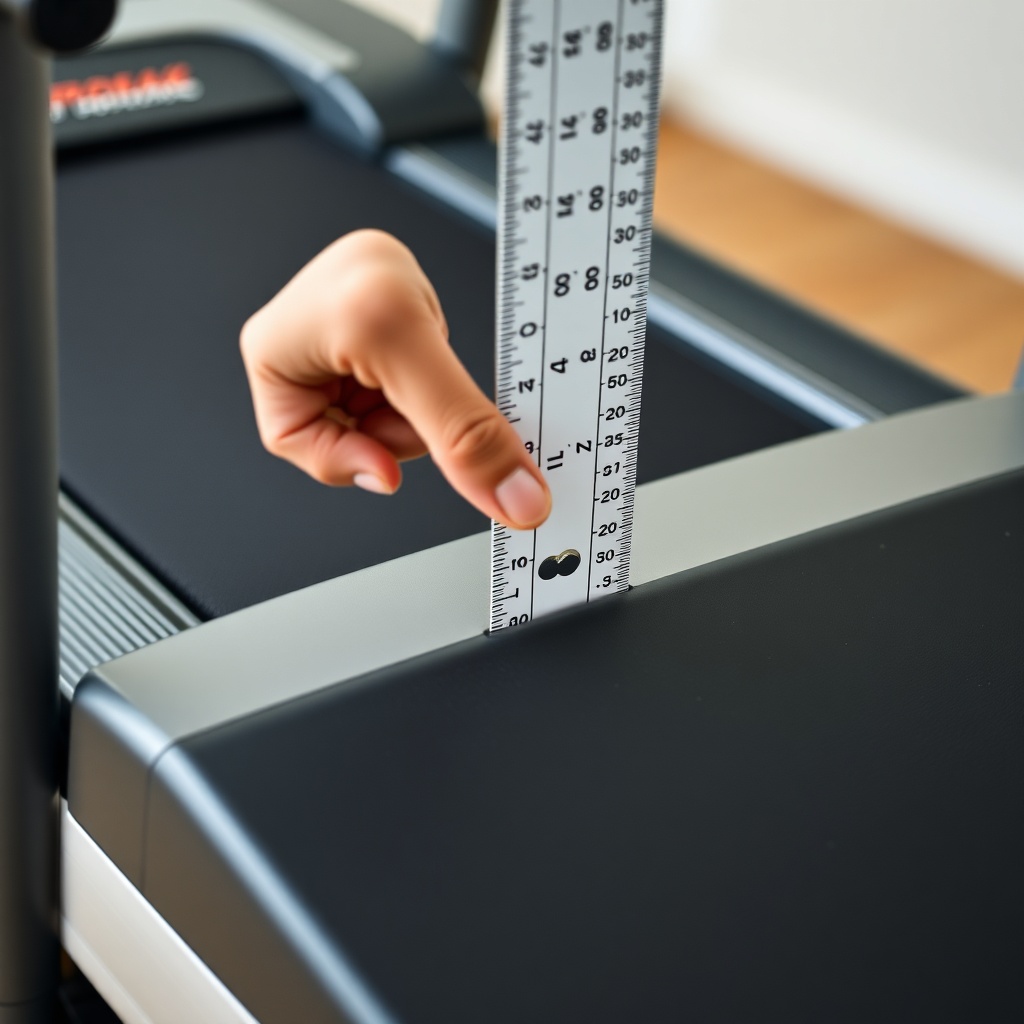

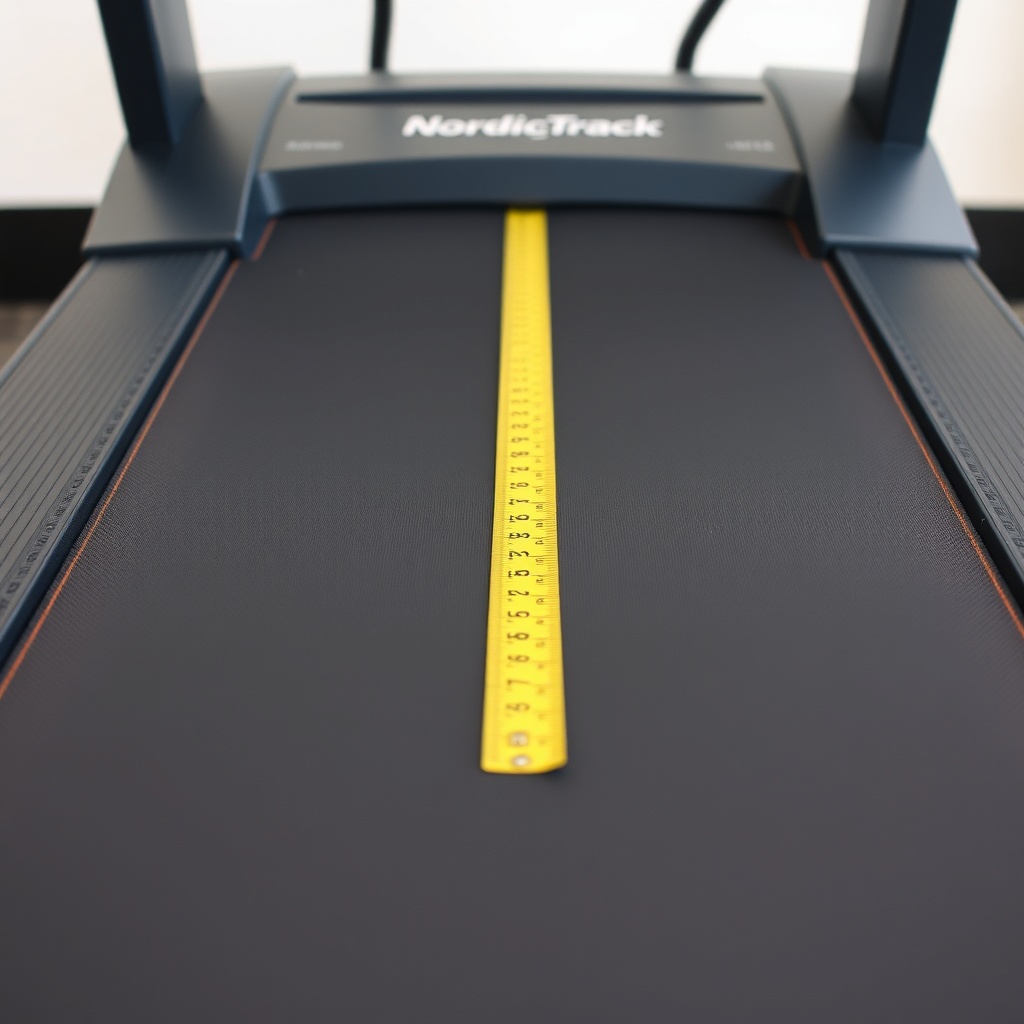

- Visual inspection: Unplug the treadmill and remove the belt guard (two screws at the front edge). Run a straightedge (a carpenter’s level or metal ruler) lengthwise across the deck. If you see a gap of more than 1/8 inch (3 mm) under the straightedge at any point, the deck is warped.
- Feel test: Walk the belt manually (with treadmill off) across the entire deck. A consistent “thud‑thud‑thud” at each footfall indicates a peak or valley in the deck surface.
- Belt tracking check: A warped deck often causes the belt to drift to one side during use, even after proper tracking adjustments. If you’ve already tried our belt alignment guide and the drift persists, suspect a warped deck.
If you confirm a warp, you must decide whether the deck can be rotated, shimmed, or needs full replacement.
What Are My Fix Options for a Warped NordicTrack Commercial 1750 Deck?
Depending on the severity and location of the warp, you have three realistic paths forward. Below is a comparison table to help you choose.
| Fix Method | Severity Range | Estimated Cost (USD) | Effectiveness | Skill Level |
|---|---|---|---|---|
| Rotate deck 180° (if symmetrical wear) | Mild concave warp (center dip <3mm) | $0 | 60–70% temporary fix (6–12 months) | Intermediate |
| Shim with hardboard/plastic wedges | Moderate warp (3–6mm gap) | $5–15 | 70–80% for low‑speed walking users | Advanced |
| Full deck replacement (OEM part) | Severe warp (>6mm) or cracking | $80–150 | 95–100% | Intermediate |
| Full deck replacement (non‑OEM) | Any warp | $40–70 | 70–85% (fit and durability vary) | Intermediate |
Rotation fix: Unbolt the deck from the frame (8–12 screws), flip it end‑for‑end, and reinstall. This works if the warp is asymmetrical—e.g., the front edge is high but the rear is flat—because the original warp is now reversed and may partially counteract the belt tension. However, this is a stopgap; the deck material is already fatigued.
Shimming fix: With the deck still bolted, slide thin strips of rigid plastic or hardboard under the low side of the warp to raise it level with the rest. Use a straightedge to verify. Only suitable for walking speeds under 4 mph (6.4 km/h); at higher speeds the shims can slip and damage the belt.
Replacement: Order a genuine NordicTrack Commercial 1750 deck (part number 384059 or equivalent—verify with your serial number). Non‑OEM decks often have slightly different thicknesses and may void the frame warranty. After replacing, lubricate the new deck immediately and follow the belt lubrication guide to prevent premature wear.
Can a Warped Deck Cause Error Codes or Motor Overheating?
Yes, indirectly. A warped deck increases drag on the drive motor because the belt has to slide over a non‑flat surface. This extra friction can trigger error codes such as E1 (motor overload) or E3 (speed sensor fault). In severe cases, consistent high‑current draw from the motor can cause the thermal overload protector to trip, leading to sudden shutdowns. For a full list of codes and their meanings, refer to our guide to common Commercial 1750 error codes.
Additionally, the increased load often causes the motor to run hotter than normal. If your motor overheats and shuts down after 15–20 minutes of running, check the deck flatness as part of your diagnostic routine (see motor overheating causes and fixes for more information).
What Owners Say About Deck Warping on the NordicTrack Commercial 1750
Owner reviews on enthusiast forums and retailer pages are mixed. Many long‑term users (2+ years, weekly mileage over 20 miles) report that the factory deck develops a slight dip at the center after about 18 months of consistent use. Some resolve it with a 180‑degree rotation and continued lubrication, while others—especially heavier runners (95 kg / 210 lb or more)—opt for an aftermarket reinforced deck costing around £65–120 (approx. $85–150 USD).
Several European owners note that placing the treadmill on a gym mat rather than directly on carpet reduces moisture‑related warping. One user on a German forum documented a deck that warped by 8 mm within six months and replaced it under warranty (NordicTrack’s standard frame/deck warranty is 10 years for the original owner in North America, 2 years in some EU countries—check your local terms).
Common complaints include the difficulty of finding correct replacement deck thickness (the OEM is 15/16 inch, but aftermarket variants are often 1 inch, causing belt fit issues). Owners emphasize that proper belt lubrication (every 150–200 miles or monthly) is the single best preventive measure against warping. Those who follow the lubrication guide consistently report fewer structural problems.
Frequently Asked Questions
Q1: Can I use a piece of plywood under the treadmill to prevent deck warping?
Yes, but only if the plywood is perfectly flat and at least 3/4 inch (19 mm) thick. Place a full 4×8-foot sheet under the entire unit to distribute weight evenly. Never use thin underlayment or carpet pads, as they allow the deck to flex underneath.
Q2: Will a warped deck damage the walking belt?
Absolutely. The belt will experience uneven wear, fraying at the edges, and potential delamination. A warped deck often leads to premature belt replacement—sometimes within 3–6 months of the warp appearing. Check your belt condition using our belt alignment guide.
Q3: How long does a NordicTrack Commercial 1750 deck typically last?
With normal care (regular lubrication, leveling, and moderate use), the deck can last 5–7 years. Heavy runners or high‑mileage use may reduce that to 2–3 years. Warping is most common in years 2–4.
Q4: Can I flip the deck over upside down instead of rotating it end-to-end?
Not recommended. The deck’s top surface is coated with a permanent wax or silicone layer for belt friction reduction. Flipping it exposes the untreated bottom side, which will increase friction and wear out your belt and motor quickly. Always rotate end‑for‑end, not top‑for‑bottom.
Q5: Does the NordicTrack Commercial 1750 have a warranty on the deck?
Yes. The frame and deck are warranted for 10 years (in North America) for the original owner. The deck is considered a structural component and is not covered for normal wear and tear, but a manufacturing defect (e.g., warping within the first year) is typically covered. Contact NordicTrack support with your purchase receipt and a photo of the gap measured with a straightedge.
Q6: Can a loose safety key cause deck warping?
No, the safety key has no mechanical relationship to the deck structure. However, if your treadmill shuts off intermittently due to a missing or damaged safety key, it may stop mid‑workout while you’re still running, causing a sudden impact that could worsen an existing warp. Keep your key in good condition—see our safety key replacement guide for correct parts.
