Peloton Bike Cadence Sensor Issues: Common Problems and DIY Fixes
The Peloton Bike is a cornerstone of connected fitness, but its cadence sensor—essential for tracking pedal revolutions per minute (RPM)—can occasionally malfunction. From erratic readings to complete signal loss, these issues disrupt your ride. This guide covers the most common cadence sensor problems and practical fixes you can try at home.
1. Why Is My Peloton Bike Cadence Sensor Not Reading at All?
A blank cadence reading or a persistent “0 RPM” display is one of the most frustrating issues. This often stems from a dead or loose battery inside the sensor unit located on the right-side crank arm. The sensor relies on a CR2032 coin cell battery, which typically lasts 6–12 months depending on usage. Signs of a dying battery include intermittent readings that gradually worsen.

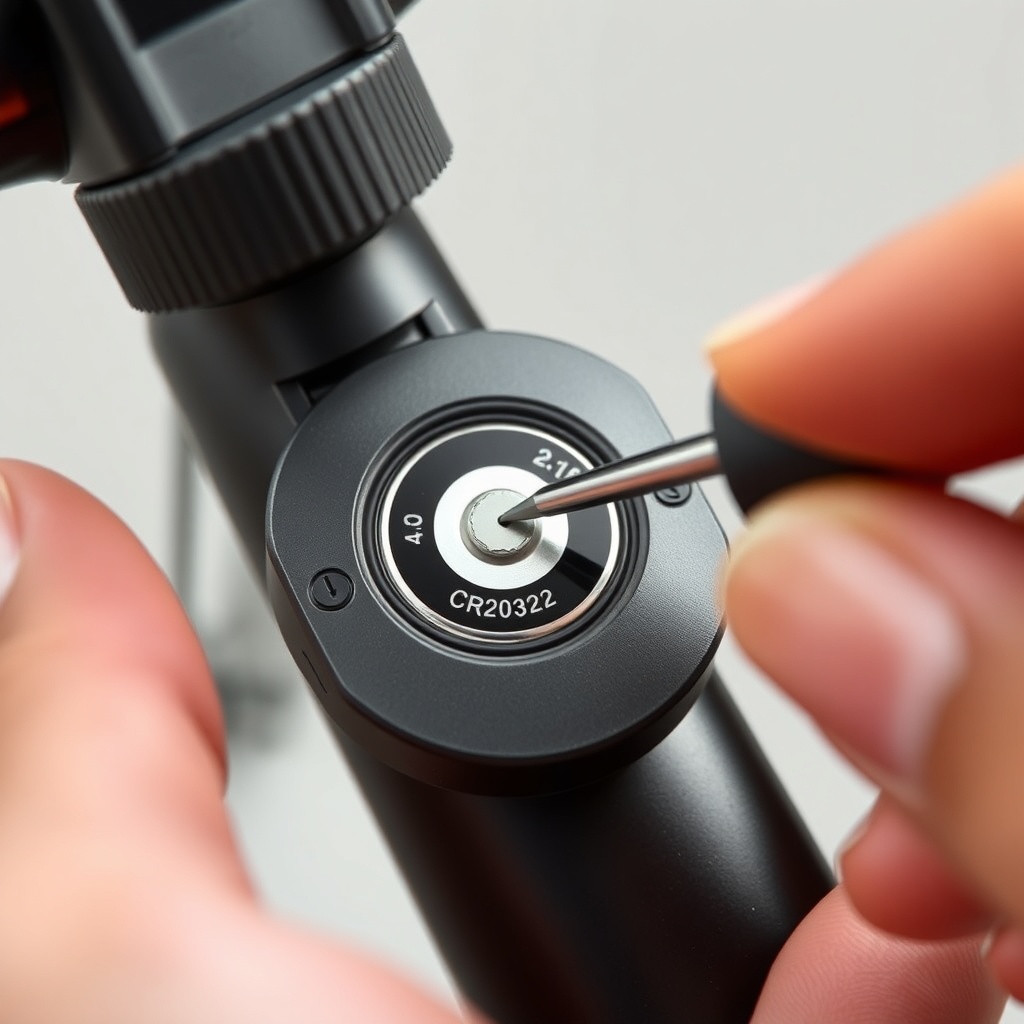

To replace the battery: gently pry open the sensor housing using a flathead screwdriver or a plastic opening tool. Remove the old battery, noting the polarity (positive side up), and insert a fresh CR2032. Re-seat the housing firmly until it clicks. If the sensor still doesn’t respond, inspect the magnetic pickup on the left-side crank arm—it may be misaligned or physically damaged. Ensure the gap between the sensor and the magnet is less than 3 mm.
2. Why Is My Cadence Reading Erratic or Jumpy?
If your cadence fluctuates wildly during a ride—jumping from 40 RPM to 100 RPM without changing your pedal stroke—it points to a signal interference or mounting issue. The most common cause is a loose or vibrating sensor. The sensor attaches to the crank arm with a rubber strap or adhesive; if that strap has stretched or the adhesive has degraded, the sensor can shift during pedaling.
Start by removing the sensor and cleaning both the sensor back and the crank arm surface with isopropyl alcohol. Re-attach with a new adhesive pad (sold in pairs for about £8 / €9 / $10). Ensure the sensor is oriented so the LED indicator faces the left side of the bike. If the issue persists, check for magnetic interference from nearby devices—move your Peloton at least 0.5 meters away from large electronic devices or power strips.
3. How to Calibrate the Peloton Bike Cadence Sensor?
Unlike the resistance calibration, which is software-based, the cadence sensor is purely magnetic and does not require traditional calibration. However, the sensor must be correctly positioned relative to the magnet on the left crank arm. Peloton recommends a “1–2 mm gap” between the sensor and the passing magnet. If the gap is too wide, the pulses aren’t detected; too close, and the magnet may scrape the sensor housing.
To adjust: loosen the two screws holding the magnet bracket on the left crank arm (use a 3 mm Allen key). Slide the bracket so the magnet aligns with the center of the silver sensor strip. Tighten the screws to 1.2 N·m (hand-tight is sufficient). Test by slowly spinning the pedals—the RPM reading should appear within one full revolution. If it doesn’t, reduce the gap further to 0.5 mm.
| Issue | Likely Cause | DIY Fix | Severity |
|---|---|---|---|
| No reading (0 RPM) | Dead battery or loose connection | Replace CR2032 battery | Moderate |
| Reading jumps 30+ RPM | Loose sensor or magnet misalignment | Re-secure sensor with new adhesive; realign magnet | Low |
| Reading drops during climbs | Sensor vibration at high torque | Add a zip-tie for extra hold | Low |
| Intermittent connection to tablet | Bluetooth interference | Move bike away from Wi-Fi routers | Moderate |
4. Can a Faulty Cadence Sensor Affect Resistance on My Peloton Bike?
No, the cadence sensor and resistance system on the Peloton Bike are independent. Resistance is controlled by a magnetic brake in the flywheel, which is modulated by the bike’s software based on your input. A broken cadence sensor will not change how resistance feels—your ride may simply lack RPM data. However, some users report that the auto-resistance feature in on-demand classes may not function correctly because the system cannot calculate power output (watts) without accurate cadence and resistance data.
If your wattage seems off but cadence looks fine, the issue might be with the resistance calibration, not the sensor. For a comprehensive approach, see our guide on Peloton Bike: Seat Adjustment Guide for Perfect Fit and Comfort to ensure your overall setup is biomechanically efficient, which can indirectly improve sensor accuracy by reducing pedal stroke irregularities.
5. Peloton Bike Cadence Sensor Upgrade Options
If you’ve exhausted all fixes and your sensor continues to misbehave, replacement is straightforward. Peloton sells replacement sensor kits (around £45 / €52 / $60 USD), which include a new sensor body and adhesive. You can also find third-party alternatives from brands like Wahoo and Garmin, which use ANT+ and Bluetooth for broader compatibility. However, these may require an adapter to fit the Peloton’s proprietary mount.
For DIY enthusiasts, swapping the sensor involves removing the old unit, cleaning the crank arm, and attaching the new one. Pairing is automatic—the bike detects the sensor within 30 seconds of pedaling. If you’re upgrading to a more rugged model, ensure it’s IPX6-rated to withstand sweat and moisture.
6. What Owners Say About Peloton Bike Cadence Sensor
In real-world usage, most Peloton owners report few issues with the cadence sensor. On platforms like Reddit and Peloton community forums, common complaints center around battery life: “I was shocked when my cadence dropped to zero mid-ride—turned out the battery was only three months old.” Others note that the sensor is sensitive to vibration and recommend using a small zip-tie in addition to the adhesive for extra security.
Some riders have discovered that after adjusting their seat height or fore/aft position, cadence readings became more stable. This is because a proper riding position reduces lateral forces on the crank arm. For a detailed step-by-step on achieving the optimal position, refer to Peloton Bike: Seat Adjustment Guide for Perfect Fit and Comfort. One owner mentioned, “After tweaking my seat, the jumpiness stopped—I think the sensor was getting knocked when I pedaled hard out of the saddle.”
Frequently Asked Questions About Peloton Bike Cadence Sensor
1. How often should I replace the cadence sensor battery?
Replace the CR2032 battery every 6–12 months, or earlier if you notice intermittent readings. Avoid using rechargeable lithium cells, which have lower voltage and may not trigger the sensor reliably.
2. Can a water-damaged sensor be repaired?
If sweat or moisture has entered the sensor housing, you might try desiccating it in a container with silica gel for 24 hours. If it still fails, replacement is the most reliable fix.
3. Will a third-party cadence sensor work with Peloton?
Yes, but compatibility is not guaranteed. Sensors that use standard Bluetooth Smart or ANT+ can send data to the Peloton app via a tablet or phone. However, the built-in screen might not detect them due to Peloton’s closed ecosystem.
4. Why does my cadence sensor only work in certain pedal positions?
This usually indicates a gap that’s too wide between the sensor and magnet. The magnet passes the sensor once per revolution—if the gap is borderline, only a specific alignment allows detection. Adjust the gap to 0.5–2 mm.
5. Does the cadence sensor affect power meter accuracy?
Yes, because power (watts) on Peloton is calculated from cadence and resistance. An inaccurate cadence reading leads to erroneous power numbers. For accurate training metrics, ensure both sensors are functioning properly.
6. How do I know if my Peloton cadence sensor is failing versus the tablet?
Connect another Bluetooth cadence sensor (e.g., from a watch or smartphone app) to your Peloton tablet. If that works, the issue is your bike’s sensor. If not, the tablet’s Bluetooth module may need a reboot—try a factory reset from the settings menu.
